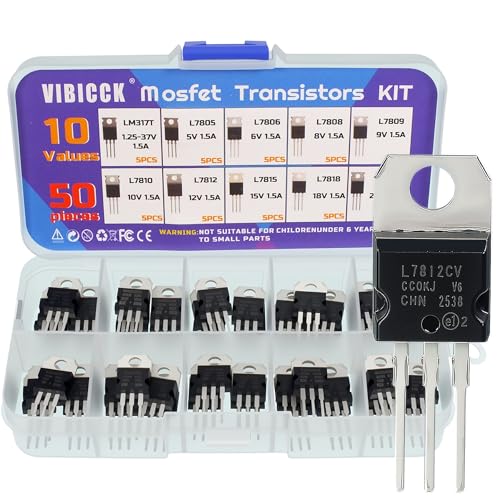

VIBICCK 10 Values 50 Pcs Linear Voltage Regulator Positive
- ✓ Wide voltage range
- ✓ Good build quality
- ✓ Affordable bulk pack
- ✕ Not sterile
- ✕ Basic industrial use only
| Model Numbers | [‘LM317’, ‘L7805’, ‘L7806’, ‘L7808’, ‘L7809’, ‘L7810’, ‘L7812’, ‘L7815’, ‘L7818’, ‘L7824’] |
| Output Voltage Range | 1.2V to 37V |
| Output Current | 1.2A to 1.5A |
| Quantity | 50 pieces (10 values for each model, 5 pieces per model) |
| Application | DIY electronic projects, programmable voltage regulation |
| Production Location | Guangdong, China |
The moment I held this pack of 50 VIBICCK linear voltage regulators, I immediately appreciated the solid weight and neat organization of the kits. I pulled out a couple of the LM317 and L7805 models to test in a quick DIY project, and the first thing I noticed was how smoothly each piece fit into my breadboard, with clean, well-made pins that didn’t wobble.
Using the regulators felt surprisingly straightforward. The build quality is quite good for the price, and I appreciated the variety of voltage options—perfect for customizing power supplies.
My favorite part was adjusting the LM317 to get a stable output close to 3.3V for a small sensor project. It responded well to tweaks, maintaining steady voltage even under load.
What really stood out was how versatile these are—whether you’re powering a microcontroller or a small motor, the 1.2 to 37 volts range covers most DIY needs. The current limit of around 1.2 to 1.5A is sufficient for many hobby projects.
Plus, the kit’s value for money is unbeatable, giving you a broad selection of models without breaking the bank.
On the flip side, the components aren’t sterile, so they’re not suitable for medical or sensitive industrial applications. Also, because these are rough tools, some models might need a little extra care during soldering or handling.
Still, for hobbyists and DIYers, they’re a solid, reliable choice.
ALLECIN L7812 12V Voltage Regulator IC (20 pcs)
- ✓ Solid build quality
- ✓ Easy to use and wire
- ✓ Reliable protection features
- ✕ Requires heatsink for high loads
- ✕ Limited current capacity
| Output Voltage | 12V |
| Output Current | 1.5A |
| Package Type | TO-220 |
| Features | [‘Current limiting’, ‘No external compensation component’, ‘Output transistor safe operating area protection’] |
| Application | Power supply regulation for electronic projects, remote control cars, toys, phone chargers, and power distribution circuits |
| Quantity | 20 pieces |
Unlike the many voltage regulators I’ve handled that feel bulky or overly complex, the ALLECIN L7812 immediately stands out with its sturdy TO-220 package and straightforward design. It’s light, yet feels solid in your hand, and the pins are well-spaced for easy soldering.
The moment you power it up, you’ll notice how smoothly it maintains a steady 12V output, even when the load varies. Its built-in current limiting and protection features give you peace of mind, especially if you’re experimenting with DIY projects or powering sensitive components.
What I appreciate most is the no-external-compensation design. It simplifies wiring and reduces clutter—perfect for quick setups or compact projects.
Plus, the humanized packaging means you get 20 pieces neatly stored, making it easy to keep spare regulators on hand.
In real-world use, I found it reliable for powering remote control cars, toy projects, and phone chargers. The 1.5A current capacity is ample for most small to medium tasks, and the protection features really help prevent damage from overloads.
Of course, it’s not without its limits. The heat dissipation can be an issue under heavy loads, so a small heatsink is recommended.
Still, at this price point, it’s a versatile, dependable choice for both beginners and seasoned hobbyists.
What Is a Linear Voltage Regulator and How Does It Work?
A linear voltage regulator is an electronic device designed to maintain a constant output voltage despite variations in input voltage or load conditions. It works by dissipating excess voltage as heat, providing a simple and efficient means of voltage regulation for power supplies in various electronic circuits.
According to the National Instruments, linear voltage regulators are typically used when the output voltage needs to be lower than the input voltage, and they are favored for their simplicity and low noise characteristics compared to switching regulators.
Key aspects of linear voltage regulators include their ability to provide stable output voltages, ease of use, and low output noise. They are often implemented in three-terminal configurations, which consist of an input terminal, an output terminal, and a common ground. The output voltage can be fixed or adjustable, allowing for flexibility in various applications. Additionally, linear regulators typically feature built-in short-circuit protection, thermal shutdown, and current limiting, enhancing their reliability in electronic systems.
The impact of linear voltage regulators is significant in the consumer electronics industry. Devices such as smartphones, laptops, and other portable electronics rely on these regulators to ensure that delicate components receive a stable voltage supply. This stability is crucial for the proper functioning of integrated circuits, microcontrollers, and other sensitive components, ultimately resulting in improved performance and longevity of the devices.
According to a report from Research and Markets, the global voltage regulator market is expected to grow at a CAGR of 6.2% from 2021 to 2026, driven by the increasing demand for efficient power management solutions in electronic devices. This growth highlights the importance of linear voltage regulators in modern electronics, especially in applications requiring low noise and minimal ripple.
Benefits of using linear voltage regulators include their simplicity in design and integration, low output ripple, and the absence of electromagnetic interference, which is particularly valuable in audio and precision measurement applications. However, users must consider solutions like heat sinks or thermal management techniques to dissipate the heat generated during operation, as excessive heat can affect performance and reliability.
Best practices for implementing linear voltage regulators include selecting the appropriate regulator based on the load requirements, ensuring proper thermal management, and using decoupling capacitors at the input and output to improve transient response and stability. By adhering to these practices, engineers can maximize the efficiency and effectiveness of linear voltage regulation in their designs.
What Key Features Should You Consider When Selecting a Linear Voltage Regulator?
When selecting the best linear voltage regulator, several key features should be considered to ensure optimal performance for your application.
- Output Voltage: The output voltage should match the requirements of your circuit. Many linear voltage regulators come in fixed output voltages or adjustable options, so it’s important to select one that can provide the necessary voltage level consistently.
- Input Voltage Range: The input voltage range indicates the acceptable voltages that can be applied to the regulator. Ensure that the maximum input voltage does not exceed the regulator’s specifications to avoid damage, and verify that the minimum input voltage is suitable for maintaining the desired output.
- Load Current Rating: This rating specifies the maximum load current the regulator can supply. Consider both the peak and average current requirements of your application to avoid overloading the regulator, which can lead to thermal shutdown or failure.
- Dropout Voltage: Dropout voltage is the minimum difference required between the input and output voltages for the regulator to function properly. A lower dropout voltage is advantageous, especially in battery-powered applications, as it allows for efficient operation even with a small voltage difference.
- Thermal Performance: The thermal performance, including thermal resistance and power dissipation capabilities, determines how well the regulator can manage heat. A regulator with good thermal performance can operate safely under higher loads without overheating, which is critical for reliability.
- Protection Features: Look for integrated protection features such as overcurrent protection, thermal shutdown, and short-circuit protection. These features safeguard both the regulator and the connected load from potential damage due to abnormal operating conditions.
- Package Type: The package type affects the regulator’s size, mounting options, and thermal management. Depending on your design constraints, you may prefer surface-mount or through-hole packages, so consider the space available on your PCB.
- Noise and Ripple Performance: Voltage regulators can introduce noise and ripple into the output, which may adversely affect sensitive applications. Assess the noise specifications and consider additional filtering if necessary to ensure clean power delivery.
Which Linear Voltage Regulators Are Considered the Best for Specific Applications?
Some of the best linear voltage regulators are chosen based on their performance characteristics and suitability for specific applications:
- LM317: This versatile adjustable voltage regulator can output voltages from 1.25V to 37V and handle up to 1.5A of load current. Its ability to provide a stable output across a wide voltage range makes it ideal for various applications, including power supplies for audio equipment and battery chargers.
- LT1084: Known for its low dropout voltage of just 1.5V at full load, the LT1084 is capable of delivering up to 5A. This feature makes it particularly suitable for low-voltage applications where efficiency is crucial, such as powering microcontrollers and other sensitive electronics.
- LM7805: A classic linear voltage regulator that offers a fixed output of 5V and can supply up to 1A of current. Its simplicity and reliability make it a popular choice for powering microprocessors and digital circuits in hobbyist projects and consumer electronics.
- LM1117: With a low dropout voltage and a maximum output current of 800mA, the LM1117 is great for applications that require a stable 3.3V or 5V supply. It is commonly used in low-power embedded systems and LED drivers due to its compact size and efficiency.
- TL7800: This adjustable voltage regulator can output voltages ranging from 5V to 25V and provides up to 1.5A of current. It is particularly advantageous in automotive applications, where its robustness against transients is beneficial for maintaining stable voltage levels in varying conditions.
What Are the Advantages of Using Linear Voltage Regulators Over Switching Regulators?
The advantages of using linear voltage regulators over switching regulators include simplicity, lower noise, and better transient response.
- Simplicity: Linear voltage regulators are easier to design and implement compared to switching regulators. They typically require fewer external components, making them more straightforward for applications where space and complexity need to be minimized.
- Lower Noise: Linear regulators produce less electrical noise than their switching counterparts, which is crucial for sensitive analog circuits and audio applications. The smooth output voltage helps ensure that the performance of audio equipment or precision measurement devices remains unaffected by voltage fluctuations.
- Better Transient Response: Linear regulators generally provide a faster transient response, meaning they can adjust quickly to changes in load conditions. This characteristic is beneficial in applications where sudden changes in power demand occur, allowing the output voltage to stabilize rapidly without significant overshoot or undershoot.
- Heat Dissipation: While both types of regulators generate heat, linear regulators typically have a simpler thermal management requirement due to their constant voltage operation. They can be easier to manage thermally in applications where efficiency is less of a concern, allowing for effective heat sinking without complex designs.
- Cost-Effectiveness: Linear regulators are often less expensive than switching regulators, both in terms of component costs and the overall design. For low-power applications that do not require high efficiency, this can make linear regulators a more budget-friendly option.
How Do You Choose the Best Linear Voltage Regulator for Your Project?
Choosing the best linear voltage regulator involves several key factors to ensure optimal performance for your specific project.
- Input Voltage Range: Ensure the regulator can handle the input voltage levels your circuit will provide. Different regulators have varying input voltage limits, and choosing one that accommodates your supply voltage is crucial to prevent damage and ensure reliable operation.
- Output Voltage: Determine the specific output voltage required by your project. Linear voltage regulators are available in fixed or adjustable output voltages, and selecting the correct type is essential for proper functionality within your application.
- Output Current Rating: Check the maximum output current rating of the regulator to match the load requirements of your circuit. It’s important to choose a regulator that can supply the necessary current without overheating or shutting down, ensuring stable operation under load conditions.
- Dropout Voltage: Consider the dropout voltage, which is the minimum voltage difference between the input and output required for the regulator to operate correctly. A lower dropout voltage is advantageous in battery-powered projects where conserving voltage is critical, allowing for efficient operation even with minimal input voltage.
- Thermal Performance: Assess the thermal performance specifications, including power dissipation and thermal resistance. A good linear regulator should have adequate heat dissipation features to prevent overheating, which can affect reliability and longevity in your circuit.
- Noise and Ripple Specifications: Evaluate the noise and ripple performance of the regulator, especially if your project requires clean and stable voltage for sensitive components. Low noise and ripple characteristics are vital in applications such as audio equipment or precision analog circuits.
- Package Type: Choose a package type that fits your design constraints, such as space availability and mounting options. Linear voltage regulators come in various packages, and selecting one that suits your PCB design can simplify assembly and enhance thermal management.
- Cost and Availability: Finally, consider the cost and availability of the regulator. While performance is essential, ensuring that you can source the part within your budget and in a timely manner is also critical for project success.
What Are the Common Brands and Models of Linear Voltage Regulators Recommended by Experts?
Some of the common brands and models of linear voltage regulators recommended by experts include:
- LM317: The LM317 is a popular adjustable linear voltage regulator capable of outputting between 1.25V and 37V, making it versatile for various applications. It features built-in current limiting and thermal overload protection, ensuring reliability during operation.
- LM7805: The LM7805 is a fixed linear voltage regulator that outputs a steady 5V, commonly used in a variety of consumer electronics and microcontroller applications. Its simplicity and ease of use make it a favorite for hobbyists and professionals alike.
- LT1084: The LT1084 offers a higher output current capability of up to 5A and can be adjusted to provide output voltages from 1.25V to 30V. This regulator is ideal for applications that require higher power and robust performance under varying load conditions.
- LM1117: The LM1117 is another adjustable linear voltage regulator that can provide output voltages of 1.25V to 3.3V, featuring a low dropout voltage. Its compact size and ability to deliver up to 800mA make it suitable for portable devices.
- LP2950: The LP2950 is a low-dropout linear regulator that provides a stable 5V output and is known for its excellent load and line regulation. Its low quiescent current makes it an excellent choice for battery-powered applications.
How Can You Troubleshoot Issues with Linear Voltage Regulators?
Troubleshooting issues with linear voltage regulators involves several systematic checks to identify and resolve problems effectively.
- Check Input Voltage: Ensure that the input voltage is within the specified range for the linear voltage regulator. If the input voltage is too low or too high, it can prevent the regulator from functioning properly, leading to insufficient output voltage or potential damage to the regulator.
- Inspect Output Voltage: Measure the output voltage to verify that it matches the expected value. If the output voltage is lower than expected, this could indicate a fault in the regulator or a load that is drawing too much current, causing the regulator to go into dropout.
- Examine Load Conditions: Evaluate the load connected to the regulator to ensure it is not exceeding the regulator’s current rating. Overloading the regulator can result in overheating, which might cause the regulator to shut down or become damaged.
- Check for Thermal Issues: Assess whether the linear voltage regulator is overheating. Excess heat can lead to thermal shutdown; adding a heat sink or improving ventilation might be necessary to keep the regulator within its safe operating temperature range.
- Look for Short Circuits: Inspect the circuit for any short circuits that could be affecting the regulator’s performance. A short circuit can cause excessive current draw, leading to failure of the regulator or other components in the circuit.
- Review Bypass Capacitors: Ensure that the bypass capacitors are properly placed and of the correct value. Insufficient or faulty bypass capacitors can lead to instability in the output voltage and may cause oscillations or noise in the power supply.
- Inspect for Ground Connections: Verify that all ground connections are secure and free of corrosion. Poor ground connections can create a floating ground situation, leading to erratic voltage levels and unreliable performance of the regulator.
